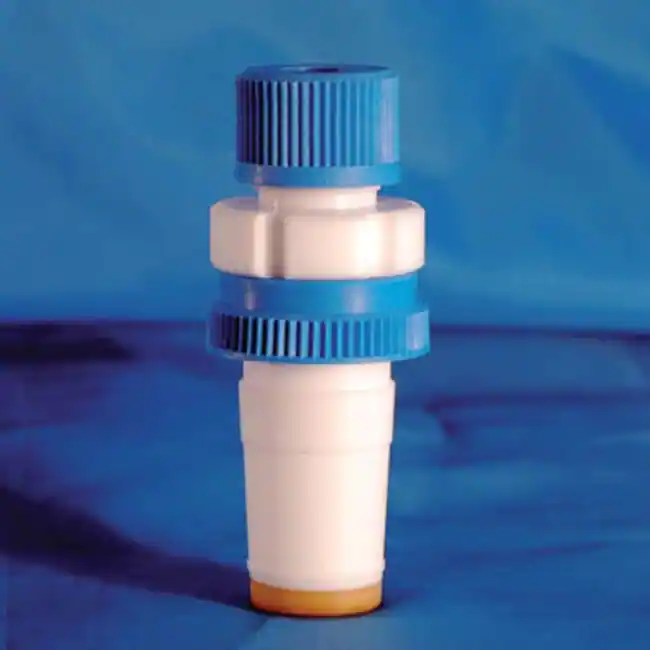

PTFE Shaft Guides, High Performance (HP), B Length Cone, PEEK Taper

PTFE Shaft Guides, High Performance (HP), B Length Cone, PEEK Taper

自 HK$1,697.00促銷價格
HP Shaft Guides provide an effective guide for use with glass and metal Shaft Stirrers over a wide range of temperature without shedding particles from the seal whilst maintaining vacuum.



The seal is made from a specially formulated PTFE-PEEK composite and this material is also used to provide a molded-in guide ring to aid alignment of the shaft.

Note: PEEK has reduced chemical resistance compared to PTFE and may be affected by acids, phenols and halogen based compounds.



Maximum recommended speeds: continuous 500rpm; intermittent 800rpm



HP Shaft Guides have an With Standard Tapers for use with glass joints.
數量
Brand: Cowie
Country of Origin: UK
005.00.0819.PK
Shaft Diameter: 8mm
Cone: 19/26
Height: 60mm
Ring Diameter: 42mm
005.00.0824.PK
Shaft Diameter: 8mm
Cone: 24/29
Height: 60mm
Ring Diameter: 42mm
005.00.1024.PK
Shaft Diameter: 10mm
Cone: 24/29
Height: 60mm
Ring Diameter: 42mm
005.00.1029.PK
Shaft Diameter: 10mm
Cone: 29/32
Height: 60mm
Ring Diameter: 58mm
005.00.1045.PK
Shaft Diameter: 10mm
Cone: 45/40
Height: 60mm
Ring Diameter: 50mm
005.00.1229.PK
Shaft Diameter: 10mm
Cone: 29/32
Height: 60mm
Ring Diameter: 50mm
005.00.1634.PK
Shaft Diameter: 12mm
Cone: 34/35
Height: 70mm
Ring Diameter: 50mm
005.00.1645.PK
Shaft Diameter: 16mm
Cone: 45/40
Height: 70mm
Ring Diameter: 58mm
005.00.1945.PK
Shaft Diameter: 19mm
Cone: 45/40
Height: 70mm
Ring Diameter: 58mm
