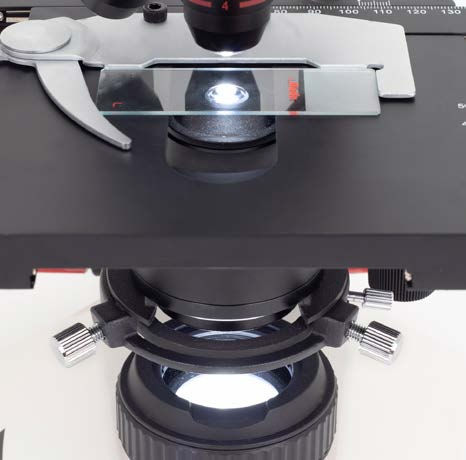

RED-240IP Infinity Optical System Binocular Microscope
The RED-200 Series is designed for advanced biology students, teachers, professors, doctors and lab technicians.
The large and heavy body ensures stability and prevents any distortion of unwanted movements while observing the sample and the large coaxial focusing controls are easily accessible and of high precision.
For the RED-200 Series, Motic is also using its finest optics. The Achromatic Super Contrast (ASC) objectives are known for their high quality and supreme contrast. Crisp clear images will be produced over a 20mm field of view.
The RED-200 Series also has a wide variety of optics to choose from. For example a complete series of Plan Achromatic objectives and Phase contrast objectives. Flexibility and quality, all in one Series!
Brand: Motic
Model no.: RED-240IP
Major Description：
Infinity optical system Binocular Microscope with 4X/0.10 (WD 17mm), 10X/0.25 (WD 6.4mm), 40X/0.65/S (WD 0.45mm), 100X objectives
| Feature | Specification |
| Optical System |
Infinity optical system |
| Observation Tube |
48-75mm Binocular head, Siedentopf type |
| Inclination |
30° inclined, 360° rotating |
| Interpupillary distance | 55-75mm |
| Diopter adjustment |
On the left tube, +/- 5 diopter |
| Eyepieces | WF10X/20mm |
| Nosepiece |
Reversed quadruple revolving nosepiece with click stops |
| Objective Classification |
Infinity Plan Lens |
| Objectives |
4X/0.10 (WD 17mm), 10X/0.25 (WD 6.4mm), 40X/0.65/S (WD 0.45mm), 100X |
| Objective Mounting Thread |
W 4/5"×1/36" (RMS standard) |
| Stage |
Built-in rackless stage |
| Stage size | 140mm×140mm |
| Travel range X&Y | 77×50mm |
| Condenser |
1.25NA focusable and centerable condenser with slot |
| Focus mechanism |
Coaxial coarse and fine focusing system with tension adjustment |
| Fine Focus Precision |
2µm minimum increment |
| Illumination |
LED 3W Koehler illumination with intensity control |
| Power Supply | 220V VDE plug |
| Accessories Included |
Dust cover, immersion oil (5ml) |
| Dimensions LxWxH |
260×175×354mm |
| Weight | 5.7kg |
